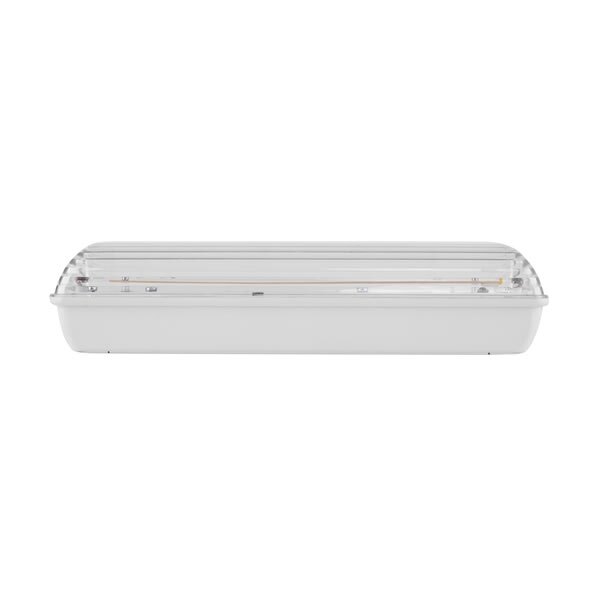

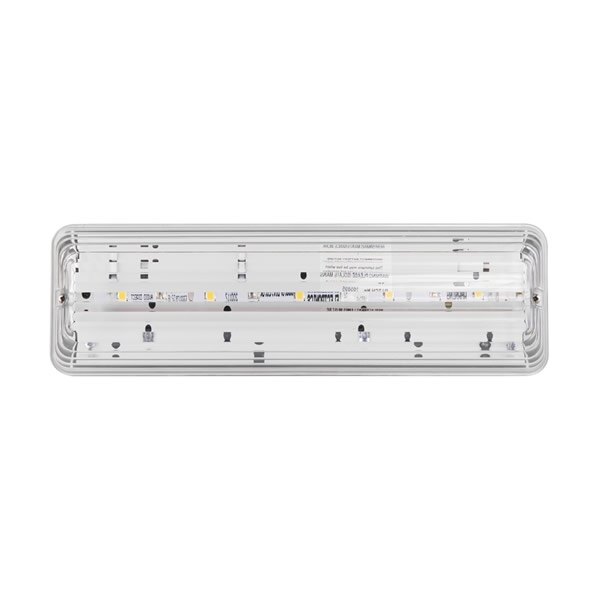

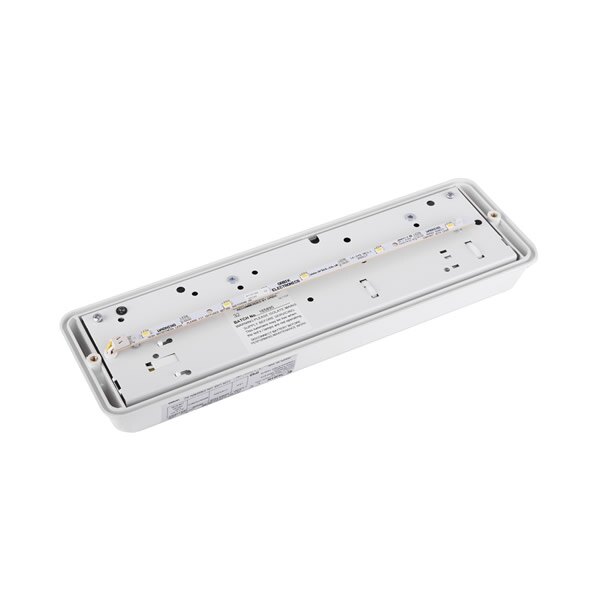

LED Emergency Lighting Bulkhead - Arc
Product Overview
Technical Data
FAQs (1)
Fitted with energy saving, high output LEDs the Arc emergency bulkhead light is a quality assured TUV Rheinland certified product, manufactured in the UK. The LEDs achieve a lifespan of greater than 54,000 hours, and the fitting is supplied with a back-up battery, providing a minimum of 3 hours illumination after a mains power failure.
- Maintained / non-maintained combo fitting – can be installed in either operation
- Switchable emergency lighting function – maintained operation only
- CE marked and manufactured to BS 60598-2-22
- Emergency back-up duration: 3 hours
- Light output:
- Maintained/switchable operation: 150 lumens
- Emergency operation: 150 lumens
- IP65 Rating – suitable for indoor and outdoor use
- Supplied complete with LEDs and battery (excluded from warranty)
- Supplied with a self-adhesive legend kit to give an exit sign option
- Can be wall or ceiling mounted

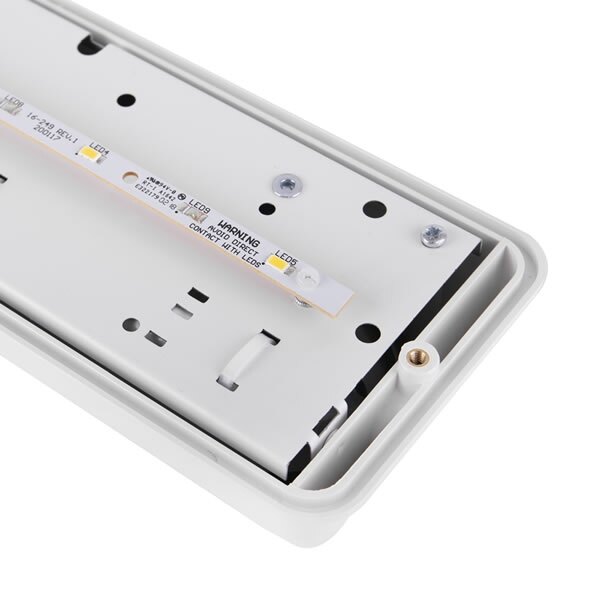

- Energy saving LEDs with lifespan of over 54,000 hours
- Soft arc lens diffuser
- 6500K colour temperature
- Flame retardant polycarbonate construction

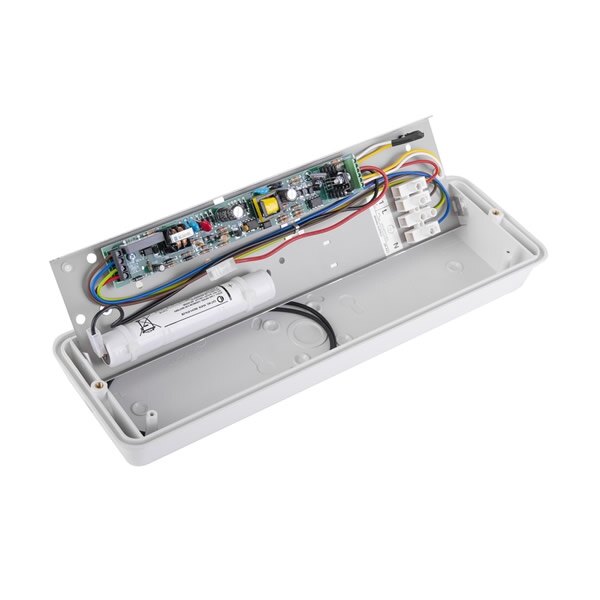

- Hinged gear tray allows rapid installation
- Manufactured in the UK
- Safelincs EXCLUSIVE 5 Year Warranty
| Product Code | OBARLED |
|---|---|
| Brand | Orbik |
| Backup Duration | 3 hours |
| Dimensions (LxWxD) | 351x111x63mm |
| Lamp Type | LED |
| Light Output | Maintained/switchable operation: 150 lumens Emergency operation: 150 lumens |
| Power Consumption | 5W |
| Weight | 1.20kg |
| Product Datasheets |
Q. Is it possible for a maintained emergency light to be converted to non-maintained when installed?
A.
Yes, it is possible for a maintained emergency light to be installed in non-maintained operation. Maintained luminaires have two live connections - permanent supply and switched supply. If you decide to install the maintained light in non-maintained operation, the electrician just needs to miss out the switched live connection during installation. It is not possible to install a non-maintained light in maintained operation.
Pricing & Availability
| Model | Stock | Price |
|---|---|---|
| Product Code: OBARLED |
Stock Level:
8 in stock Expected dispatch: 25th Nov
|
Price:
£16.40 inc VAT £13.67 ex VAT |
