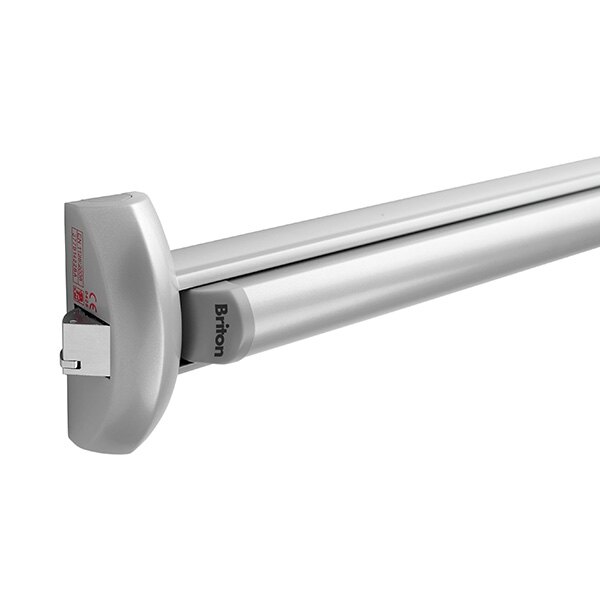

Briton 571 Single Door Touch Bar with 1 and 3 Point Locking

The Briton 571 Touch Bar is a slimline, stylish panic device suitable for use on timber or steel doors that are accessible to the public. Its sleek design makes it ideal for prestigious locations where aesthetics are as important as safety. The Briton 571 is available either as a horizontal push bar with one point latch locking, or with a pullman latch kit, enabling two or three point locking.

• Suitable for:
  • Single doors and the active leaf of rebated double doors
  • Left and right handed doors - Non-handed
  • Doors up to 2500mm high and with a minimum clear opening width of 500mm
  • Final exit doors accessible to the public - non-trained personnel
• 840mm & 1200mm versions available (suitable for 940mm & 1300mm width doors respectively)
• Fire rated for use on timber (FD120) doors
• Successfully fire tested to EN 1634
• CE marked and certified to EN 1125 for panic hardware
• Category of use: Class 3 - high frequency of use by public and others with little incentive to exercise care
• 5 year manufacturer's warranty
• Compatible with outside access devices:
  • Briton 1413/KE - Knob Operated Outside Access Device
  • Briton 1413/LE - Lever Operated Outside Access Device
  • Briton 9260 - Mechanical Code Lock
• Unobtrusive, slim-profile touch bar design

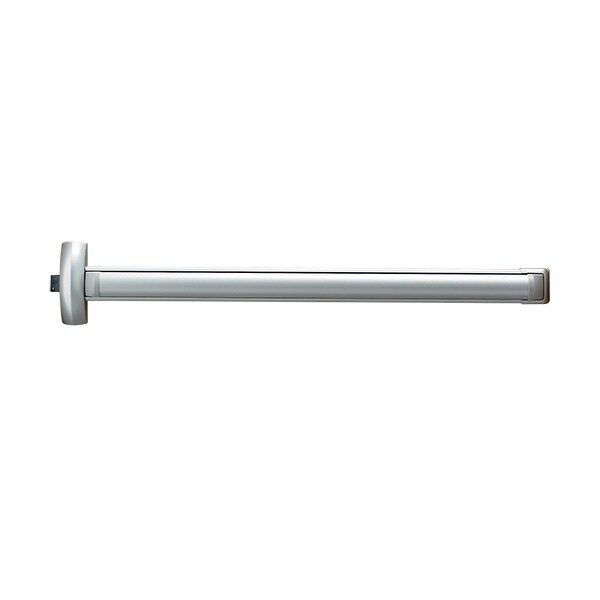

• Horizontal bar provides one point latch locking

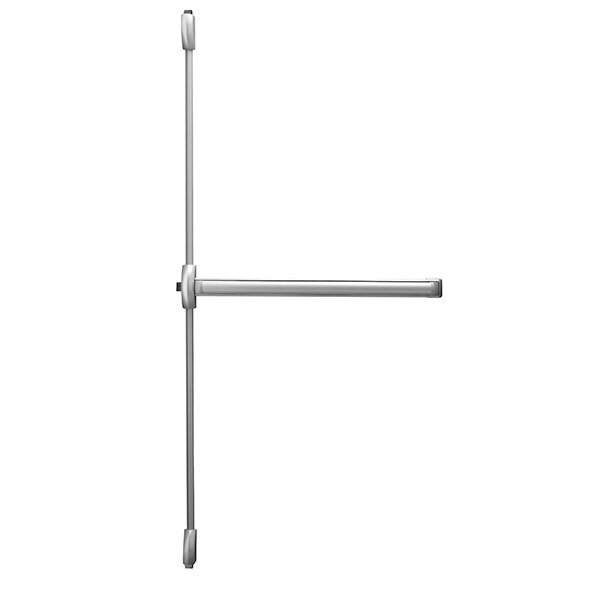

• Three point locking with top and bottom pullman latch kit available
• Two point locking achievable by disabling the horizontal bar latch (when used with a pullman latch kit)
• Supplied in silver finish as standard
