Outward Opening Emergency Bolt - Cooper

Discontinued Product

This product has been discontinued.

Product Overview

The Cooper Bolt outward opening emergency bolt is designed to secure doors but also allow access during an emergency. The outward opening models are fitted with a push pad device which releases the bolt and allows the door to be opened.  This bolt can be reset by the key holder only, ensuring that the units can not be tampered with. Unlike many emergency door bolts the Cooper Bolts do not have any consumable parts that need to be replaced, making them cheaper and easier to maintain whilst also reducing the risk of vandalism.

  • Door is bolted except in an emergency
  • When the push pad is pressed, the bolt is released and the door is opened
  • No glass or plastic to break
  • Nothing to vandalise, such as chains or hammers
  • Suitable for outward opening, single doors
  • Once opened, bolt can only be reset by keyholder (where applicable)
  • Totally enclosed with hidden fixings
  • Robust construction with 12mm (1/2") steel plated bolt

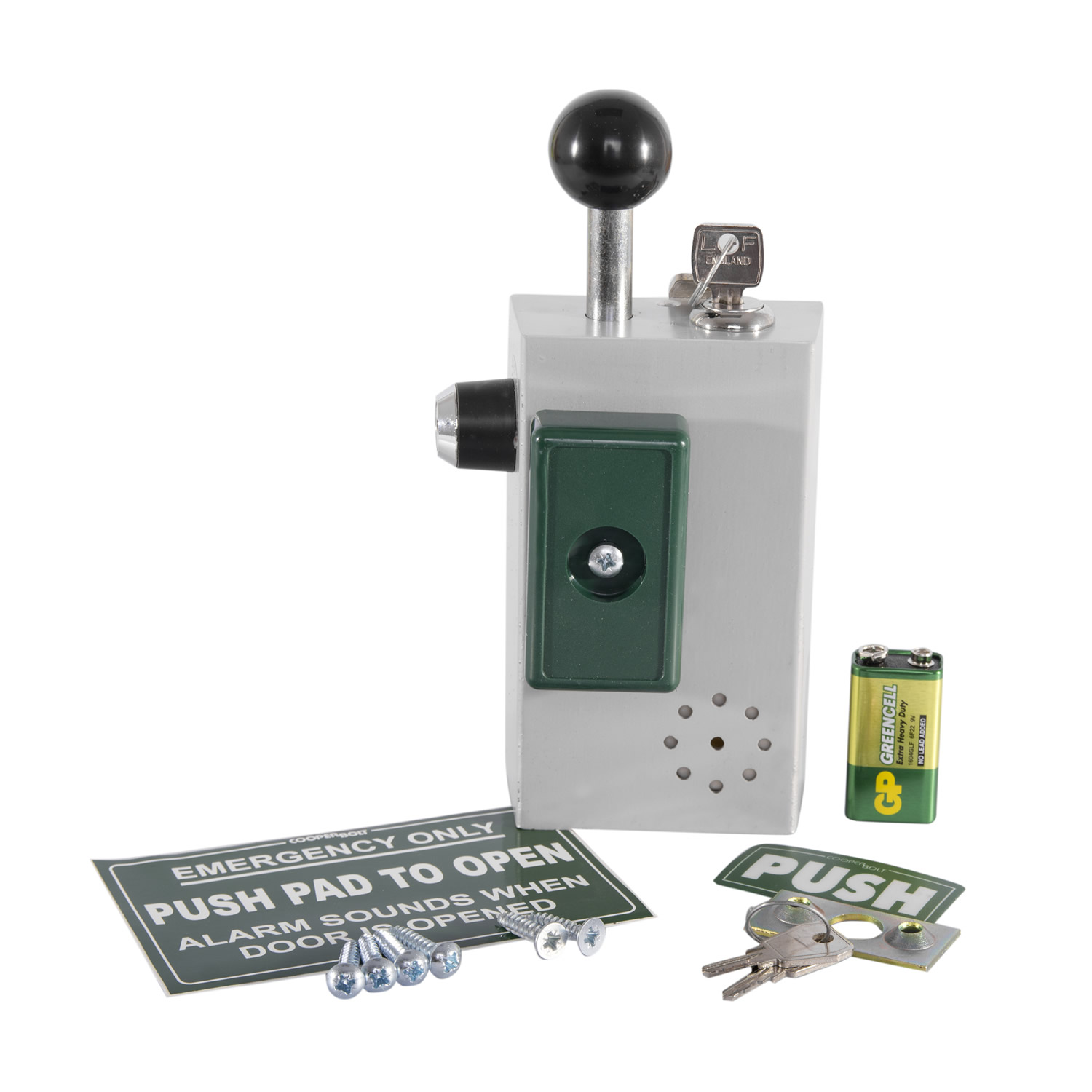

  • Comes with 'emergency only' instruction sign and 'push' sticker
  • Easy to fit (detailed instructions, screws & strike plate included)
  • Dimensions (main body HxW): 85x135mm
  • Models with audio alarm available - giving an alarm of approximately 105db (Battery included)
  • Manufactured in the UK
  • Supplied with flat keep as standard - other fixings available (sold separately) for non-standard installations

Please Note: The alarmed units are not suitable for fitting to steel or magnetic doors.

Additional Information

The table below shows the outside access devices that can be used in conjunction with the outward opening emergency bolt from Cooper.

Model Number Type of Unit
EBCB105 Cooper Bolt Pull Release
EBCB117 Cooper Bolt Manual Key Latch

External fire exit doors can cause major access and security issues; all fire exit doors must be easily opened in case of emergency.  Cooper Bolt enables quick and easy access to safety in the event of an emergency. At the same time the Cooper Panic Bolt will stop un-authorised access.

Standard Alarmed Alarmed
(Water Resistant)
Alarmed with Switch

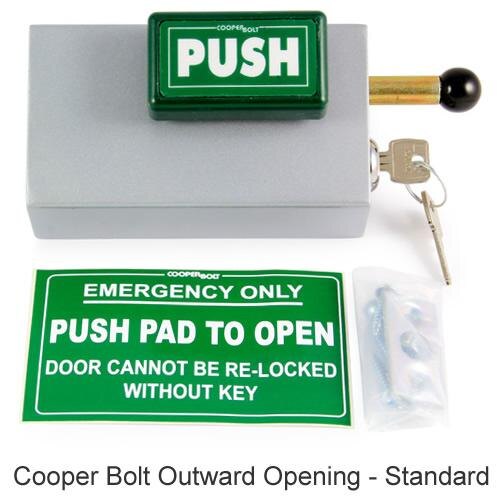

101: Standard model

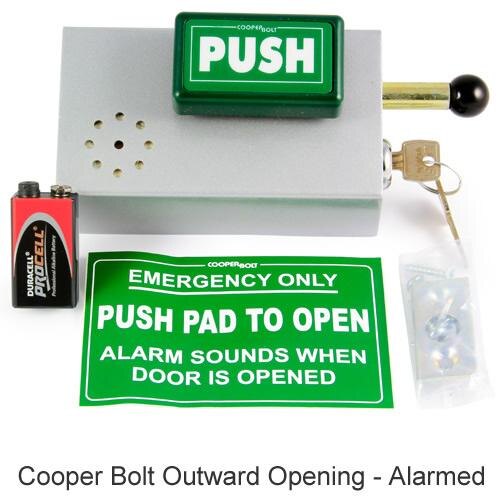

103: as Standard model, but incorporating battery operated alarm, which will sound if the door is opened

103W: As 103, but with water resistance

103S: As 103, but featuring additional on/off key switch allowing use as standard mode

Technical Data
Product Code

Standard:  EBCB101

Alarmed:  EBCB103

Alarmed (Water Resistant):  EBCB103W

Alarmed with Switch:  EBCB103S

Brand The Emergency Bolt Company
Dimensions (HxWxD)

135x85x42mm

Weight

EBCB101: 0.8kg

EBCB103: 0.85kg

EBCB103W: 0.85kg

EBCB103S: 0.9kg

FAQs (1)
Q. Is the Cooper Emergency Bolt British Standard certified?
A.

The cooper bolt comprises of a bolt and a key lock. There are no British Standards for bolt locking devices with a key reset. It is a one action operation, which Fire Authorities require in an emergency situation.

Key Product Features

All models: Can be reset by any key holder, ensuring that the units cannot be tampered with

All models: Large push button to open the emergency bolt, allowing access in an emergency

Alarmed bolts: Integrated sounder, giving a loud audible alarm of approximately 105dB

Alarms with switch: Additional on/off key switch deactivates alarm for authorised personnel

Customer Reviews

6 customers have given this product an overall rating of 4.7 out of 5

Reviews by real customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 4 / 5 Stars

Reviewed by:

still as good as ever used many times over period of years and still a reliable well made product

Published on: 8th July 2017

Rating: 5 / 5 Stars

Reviewed by:

Good quality product

Published on: 17th July 2016

Rating: 5 / 5 Stars

Reviewed by:

Easy to fit and does the job

Published on: 10th January 2014
