System X For Dorgard Fire Door Retainers and Deafgard Deaf Units - Free Site Survey

How it works

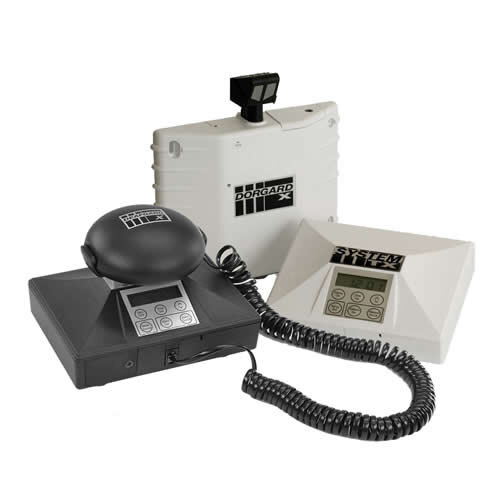

The System X transmitter unit (TX) is positioned beside the fire alarm bell or sounder. On identifying an alarm condition this unit automatically signals to all Dorgard X and Deafgard X units with radio signals. When a Dorgard X receives a signal from the TX unit the Dorgard X will release the fire door, allowing it to close and helping to prevent the spread of fire and smoke. When the Deafgard X receives a signal from the TX unit the vibration pad will activate and the Deafgard X unit will begin to strobe alerting deaf users that an alarm has been activated. Any number of Dorgard X and Deafgard X units can be linked to a System X transmitter within range, although a free Site Survey must be carried out prior to installation as building structures and layouts can vary.

Dorgard X (Receiver)

Dorgard X works the same way as a standard Dorgard, by allowing a fire door to be held open legally. However, it is listening out for a radio signal from the System X Transmitter (TX) unit rather than for the local sound level. Upon receiving the radio signal from the TX unit the Dorgard X will release the fire door allowing it to close under the pressure of the overhead door closer.

System X (Transmitter)

The System X Transmitter (TX) is positioned next to your fire alarm bell or sounder. In the event of the fire alarm sounding, the TX unit will transmit a radio signal to all Dorgard X and Deafgard X units within a 100 metre range to release the fire doors and activate all the Deafgard units.

Deafgard X

Deafgard X works in a similar way to the Dorgard X. The system is activated by the System X transmitter. When the Deafgard X receives a signal from the System X transmitter, the bedside unit will activate the high intensity strobe and vibration pad.

Installation

Although the System X has a range of 100 metre's, this is dependent on the installation location, as every building is different. Electrical appliances, building material and other solid objects can effect the range. This is why a Site Survey is imperative.

Before installation, a Site Survey must be carried out on the building where System X is to be installed. The Technician will calculate the number of System X transmitters (TX) needed for your building, as well as locations for them and System X receiver units, such as Dorgard X and Deafgard X.
