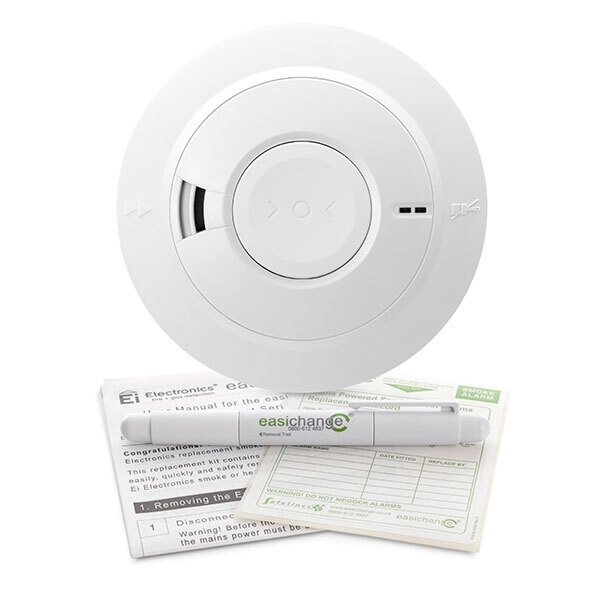

Replacement for Ei166, Ei166RC and Ei166e Mains Powered Smoke Alarms

4.8 out of 5 stars
£51.23 inc VAT
£42.69 ex VAT
Product Overview

The Ei166, Ei166RC and Ei166e are mains powered optical smoke alarms featuring a longlife lithium back-up battery. Since the Ei166 alarms have been discontinued, Ei Electronics (also known as Aico in the UK) have designed the new Ei3016 optical smoke alarm to be the perfect, fully compatible replacement.

The new Ei3016 can connect with any Ei160 series alarms still in your system, and it will even fit onto your existing Ei166 base without any need for an electrician. The optical sensor technology in the Ei3016 has been upgraded to be even less susceptible to false alarms than its predecessor.

  • Power: 230V mains powered with back-up battery
  • Backup Battery: Self-charging lifetime battery
  • Warranty: 5 year warranty
  • Also the recommended replacement for the Ei161 mains powered ionisation smoke alarm
  • Suitable for bedrooms, living rooms, hallways, landings and dining rooms
  • AudioLINK technology allows users to extract real time data to their smart phone or tablet
  • High performance optical sensor most suitable for detecting slow, smouldering fires
  • Fits onto your existing Ei166 alarm base (Easi-Fit base included to keep as a spare)
  • Memory feature – easy to identify an alarm that has previously sounded
  • CE and Kitemarked to BS EN 14604: 2005
  • Performs its own internal self-checks every 48 seconds to ensure the alarm is functioning correctly
  • Warning alarm 85dB at 3 metres
  • Large combined test and silence button

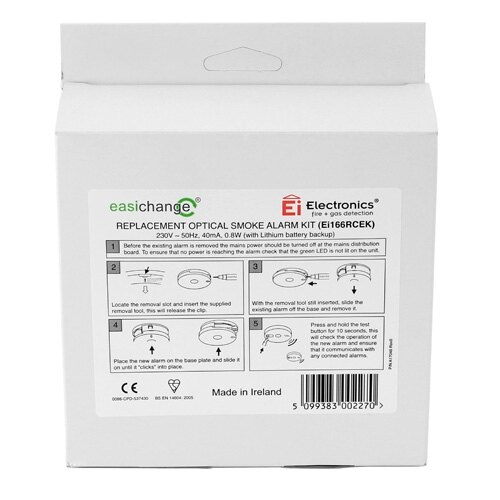

The simple installation process of the Ei3016 replacement alarm removes the need for an electrician. However, power to all alarm circuits must be cut before removing and replacing any mains powered alarm.

Interlink

The tables below show all the products that can interlink with this alarm.

Smoke and Heat Alarms

Model Number
Type of Unit
Type of Interlink
Ei3014 / Ei3014RF Mains Powered Heat Alarm - Sealed Lithium Hardwire Interlink
Ei3016 / Ei3016RF Mains Powered Optical Smoke Alarm - Sealed Lithium Hardwire Interlink
Ei3024 / Ei3024RF Mains Powered Optical & Heat Alarm - Sealed Lithium Hardwire Interlink
Ei3028 / Ei3028RF Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium Hardwire Interlink
Ei2110e / Ei2110eRF Mains Powered Multi Sensor Smoke & Heat Alarm - Sealed Lithium Hardwire Interlink
Ei161e / Ei161eRF Mains Powered Ionisation Smoke Alarm - Sealed Lithium Hardwire Interlink
Ei164e / Ei164eRF Mains Powered Heat Alarm - Sealed Lithium Hardwire Interlink
Ei166e / Ei166eRF Mains Powered Optical Smoke Alarm - Sealed Lithium Hardwire Interlink
Ei141 / Ei168RC141RC Mains Powered Ionisation Alarm - 9V Alkaline Hardwire Interlink
Ei144 / Ei168RC144RC Mains Powered Heat Alarm - 9V Alkaline Hardwire Interlink
Ei146 / Ei168RC146RC Mains Powered Optical Smoke Alarm - 9V Alkaline Hardwire Interlink

Carbon Monoxide Alarms

Model Number
Type of unit
Type of interlink
Ei3018 / Ei3018RF Mains Powered Carbon Monoxide Alarm - Sealed Lithium Hardwire Interlink
Ei3028 / Ei3028RF Mains Powered Heat & Carbon Monoxide Alarm - Sealed Lithium Hardwire Interlink
Ei261 Mains Powered Carbon Monoxide Alarm - Sealed Lithium Hardwire Interlink

Ancillary Products

Model Number
Type of unit
Type of interlink
MCP401RC Mains Powered Manual Call Point Hardwire Interlink
Ei1529RC Mains Powered Locate, Silence & Test Control Switch Hardwire Interlink
Ei159 Mains Powered Smoke Alarm Locator Switch Hardware Interlink
Ei128R Mains Powered 5A Relay Module Hardwire Interlink
Ei128RBU Mains Powered 5A Relay Module with Lithium Backup Battery Hardwire Interlink
Y03 Mains Powered Multi Frequency Sounder Hardwire Interlink (via relay)
SAB300C Mains Powered Flashing Xenon Strobe (Clear) Hardwire Interlink (via relay)
SAB300R Mains Powered Flashing Xenon Strobe (Red) Hardwire Interlink (via relay)

Wiring Explained

Mains powered Ei Electronics smoke and heat alarms require a 230V AC power supply and up to 12 alarms can be hardwire interlinked in one system.

To obtain a mains power supply, each alarm can be connected to the nearest lighting circuit using 2 core and earth cable with a separate, dedicated interlink cable connecting all alarms. However, if possible it is recommended that the alarms are all powered from a dedicated circuit from the distribution board using 3 core and earth cable for safety during maintenance, as the interlink cable will carry power from live alarms on other power circuits. Please see the diagram below:-

Wiring Mains Powered Alarms

Technical Data
Product Code EI166RA
Alternative Product Codes Ei3016, Ei166, Ei166RC, Ei166e, Ei166EK
Brand EI Electronics
Back-Up Battery

Self-charging lithium battery

Dimensions (HxDia)

55 x 150mm (including base)

Operating Temperature

0°C to 40°C

Relative Humidity

15% to 95%

Sound Output

85dB

Weight 0.40kg
Product Datasheets

Key Product Features

Hard-wire interlinks with any remaining Ei160 series alarms in your system

Combined test and hush button for weekly testing and maintenance

Connects directly onto your existing Ei166 base - no electrician needed

Ei3016 replacement alarm made by original Ei166 manufacturer

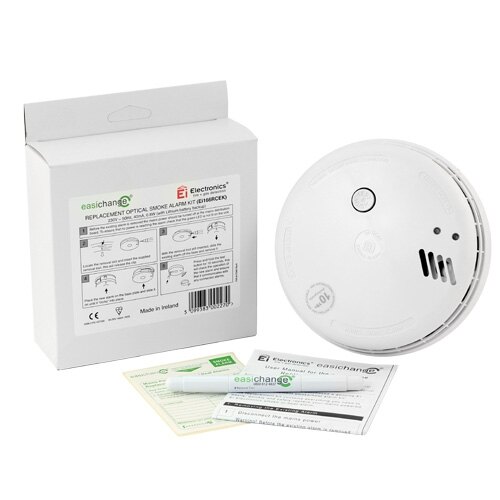

What's Included?

Every EI Electronics EI166RA is supplied with the following components.

  • 1 x Ei3016 optical smoke alarm
  • 1 x Sealed 10-year lithium back-up battery
  • 1 x Spare easi-fit base plate
  • 1 x Screw fixing set (screws & rawl plugs)
  • 1 x Instruction manual
