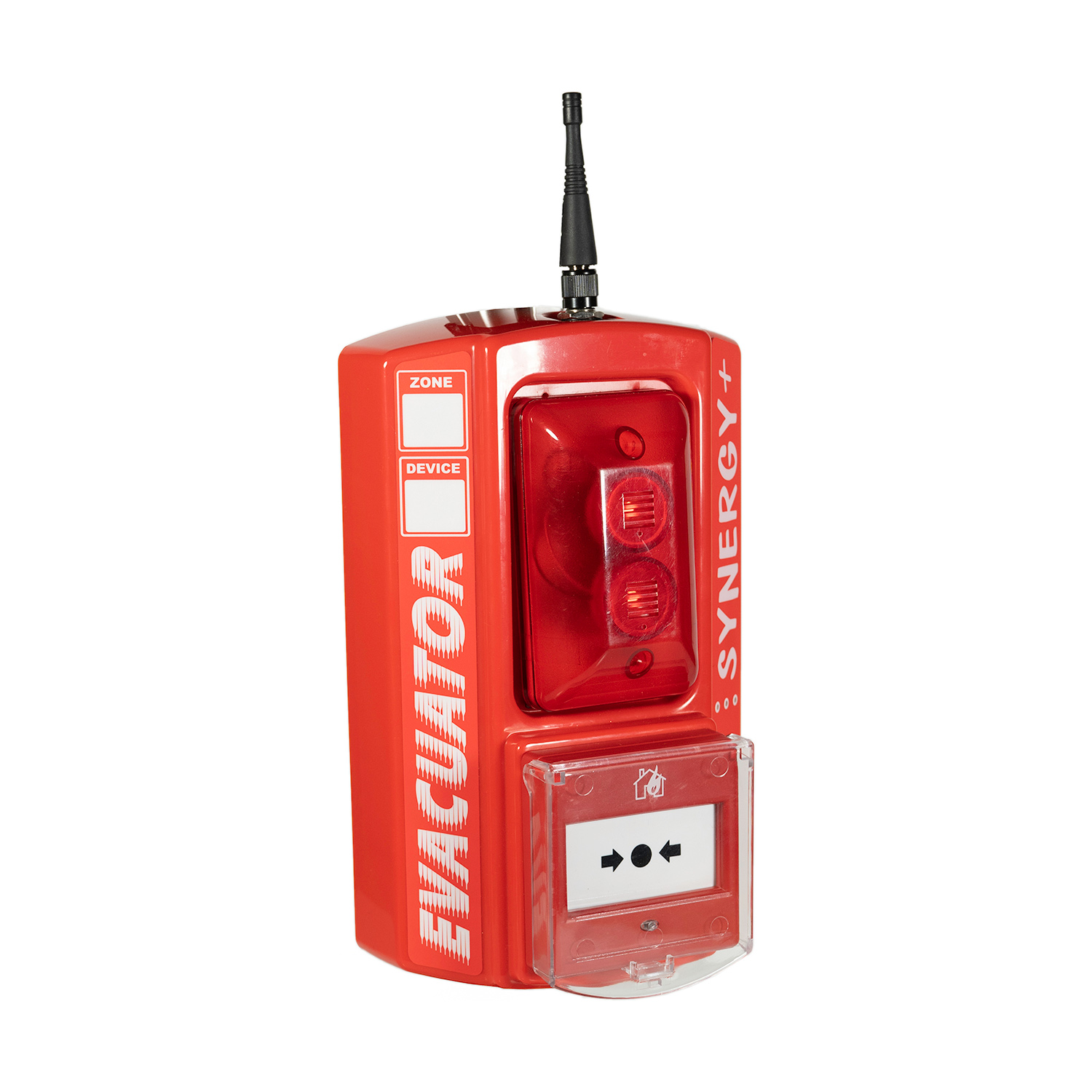

Evacuator Synergy+ Wireless Call Point Site Alarm

The Synergy+ site alarm range from Evacuator allows up to 250 units to be interlinked wirelessly to provide alarm coverage across much larger sites than previous models. Also known as Synergy Plus, this call point unit features a standard front-facing call point with integrated hinge cover, a loud 110dB sounder, powerful LED strobe light, and system-wide reset functionality – a full system can be setup and cover a site using only call point units. The mesh network connectivity protects against a single faulty or low-battery unit compromising the entire system with overlapping RF coverage allowing all in-range units to communicate to each other.

Please Note: The Synergy+ range (red) is not compatible with the previous Synergy RF range (white).

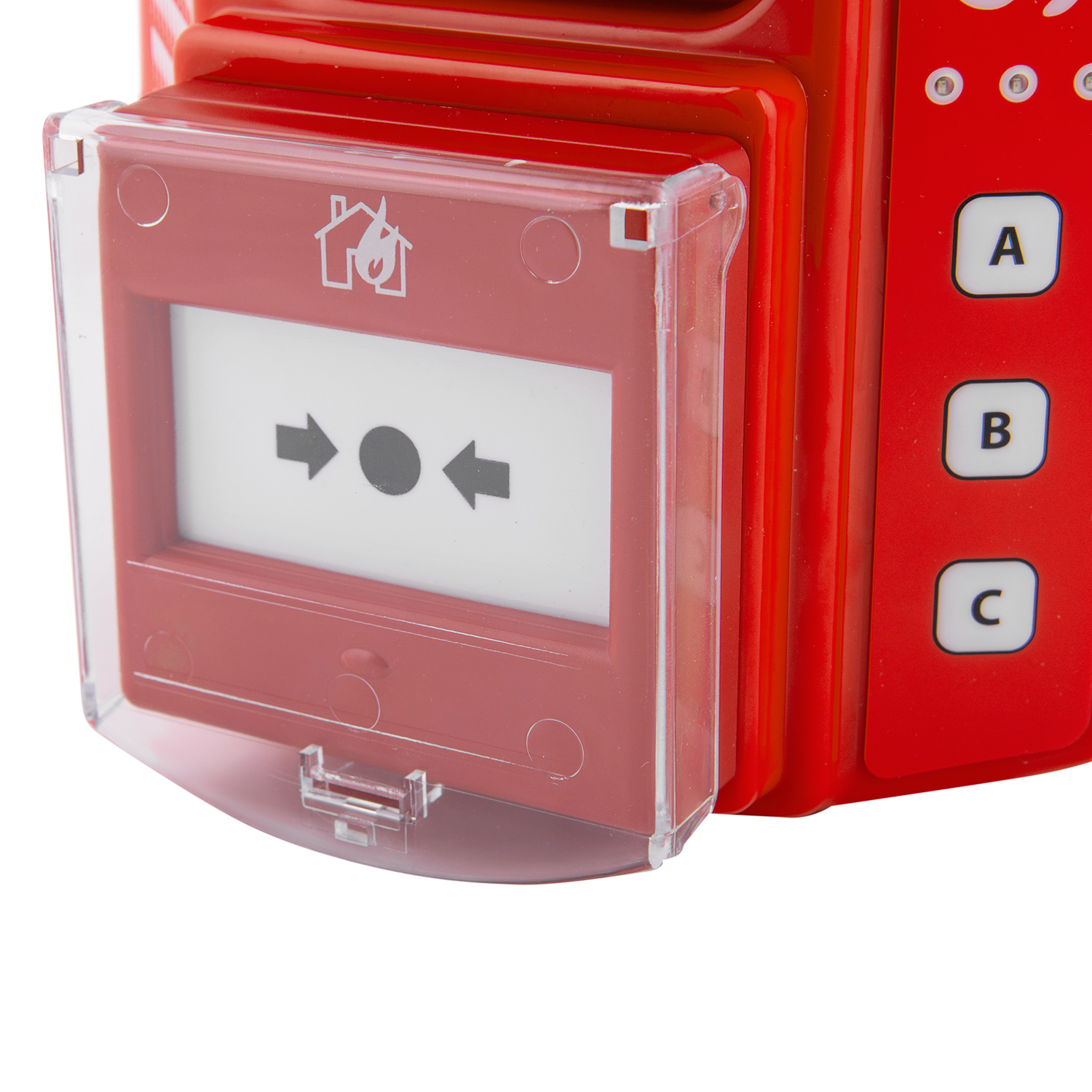

• Front facing call point for manual activation, supplied with hinged cover
• 9V battery powered site alarm – up to 3 years battery life!
• Provides low battery and out of RF range warning
• Sounds a loud 110dB warning siren
• Part of the Synergy+ wireless site alarm range
  • Wirelessly interlink up to 250 other Synergy+ devices
  • Mesh network connectivity – all in-range units communicate with each other, no single point of failure
  • Monitor, test, and reset all units in a system from a single location (some features require a Base Station)
  • Category One radio module using 869MHz
  • Radio frequency range: 2000m line-of-sight
• IP55 rated for outdoor use
• Suitable for wall or post mounting
• Replacement battery packs (black) available separately
• Dimensions (HxWxD): 350 x 163 x 98mm
• CE, UKCA, RoHS, and EMC compliant

Please Note: Base Station units are not required for interlinking a Synergy+ system of Call Points, Smoke & Heat Detectors, and Sounder / Strobe units, but they do provide additional benefits for maintenance and testing, and are required for First Aid or GSM Gateway functionality.
