Exidor 297 Single Door Push Pad With Latch

4.7 out of 5 stars
Choose a product To see stock availability
From: £61.67 inc VAT
£51.39 ex VAT
Product Overview

When it comes to exit hardware, quality counts. Exidor equipment is manufactured in the UK to the very highest standards. The Exidor 297 push pad with latch is a fail-safe, great value system for single exit doors. This product is suitable for use in areas where the occupants of the building are familiar with their surroundings, i.e. places of work. The Exidor 297 push pad and latch are fire rated for use on both timber and steel doors. Exidor equipment can also boast that all components are manufactured from start to finish within the UK, all to the very highest quality. As standard, Exidor products are subject to rigorous third party testing before being released, and as such fully conform to BS EN 179 and are CE marked as well as Certifire accredited. The manufacturer's confidence in the build quality of this product is underlined by their 10 year warranty period.

  • Single door push pad with latch
  • Manufactured in the UK
  • Available with the following optional outside access device options:
  • Suitable for use within places of work
  • Non-handed - suitable for use on left & right-handed doors
  • Long term performance guaranteed - tested to withstand a minimum of 200,000 cycles
  • Category of use: Class 3 = high frequency of use by public and others with little incentive to exercise care
  • For use on outward opening final exit doors
  • Suitable for use on fire and smoke door assemblies as tested in accordance with EN 1634-1
  • Designed for doors weighing no more than 200kg
  • 10 year manufacturer's warranty
  • Supplied with fixings for wooden doors as standard
  • CE marked and Certifire accredited
Outside Access Devices

Outside Access Devices

Where required, it is possible to enable controlled access from the outside into your property through an emergency exit. Exidor's 200 series of products allow for this as they are compatible with the two devices linked to below. Both devices offer the versatility of a secure means of entry without compromising the functionality of the emergency exit equipment. They are also are fully compatible with the Exidor 296 single door panic bar, as well as all other Exidor 200 series products.

Exidor 302 Outside Access Device With Knob

This device features a knob style handle and is supplied with a euro profile cylinder and three keys as standard. It is also certified for use on fire doors in conjunction with Exidor fire escape hardware.

Exidor 322 Outside Access Device With Lever

This device features a lever style handle which some find easier to operate. It is also supplied with a euro profile cylinder and three keys as standard, and is certified for use on fire doors in conjunction with Exidor fire escape hardware.

Exidor CL1 Mechanical Code Lock

This device features a lever style handle and 12 stainless steel mechanical buttons allowing 1,584 different lock combinations. This code lock is suitable for use on fire exit doors when used in conjunction with Exidor panic hardware.

Technical Data
Product Code

Push Pad Only:  EXD297

Push Pad with Knob Operated Outside Access Device:  EXD297302EC

Push Pad with Lever Operated Outside Access Device:  EXD297322EC

Push Pad with Mechanical Codelock Outside Access Device:  EXD297CL1

Brand Exidor
Dimensions (HxWxD)

174x55x80mm

Door Suitability

Max. Door Dimensions: 2440mm (H) x 1220mm (W)

Warranty

10 years

Weight

EXD297: 0.87kg

EXD297302EC: 1.97kg

EXD297322EC: 2.12kg

EXD297CL1: 2.62kg

Product Datasheets

Pricing & Availability

Model Stock Price
Push Pad Only
Product Code: EXD297
Stock Level:
More than 20 in stock Expected dispatch: Today
Price:

£61.67 inc VAT

£51.39 ex VAT

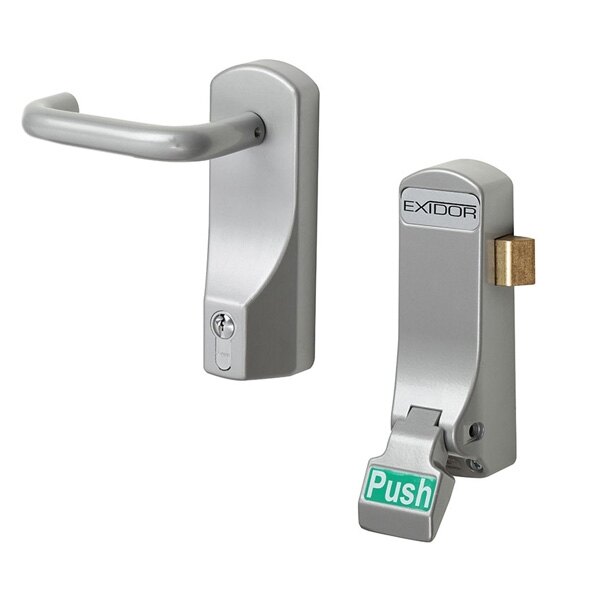

Push Pad with Lever Operated Outside Access Device
Product Code: EXD297322EC
Stock Level:
More than 20 in stock Expected dispatch: Today
Price:

£122.39 inc VAT

£101.99 ex VAT

Push Pad with Knob Operated Outside Access Device
Product Code: EXD297302EC
Stock Level:
More than 20 in stock Expected dispatch: Today
Price:

£125.51 inc VAT

£104.59 ex VAT

Push Pad with Mechanical Codelock Outside Access Device
Product Code: EXD297CL1
Stock Level:
More than 20 in stock Expected dispatch: Today
Price:

£226.43 inc VAT

£188.69 ex VAT

Delivery Options

The following delivery options are available on this product.

Standard Delivery

£3.19 inc VAT - Orders will be delivered in 2-3 working days with Evri

Next Working Day Delivery

£6.19 inc VAT - Orders will be delivered the next working day with Evri

For dispatch today order within

Excellent Warranty

This product is supplied with a 10 year manufacturers warranty as standard

Customer Reviews

6 customers have given this product an overall rating of 4.7 out of 5

Reviews by real customers

All of our product reviews are written by real customers that have purchased this product from us and are published without modification.

Rating: 5 / 5 Stars

Reviewed by: E H

Does what it says on the tin. ideal thank you.

Published on: 9th October 2024

Rating: 4 / 5 Stars

Reviewed by: A W

poor instructions please read your instructions you need to get wright took me a long time to work it out .

Published on: 21st August 2020

Rating: 5 / 5 Stars

Reviewed by: G W

Good product Some parts were missing but were sent out later when requested.

Published on: 28th July 2020
