Mains Thermally Enhanced Optical Smoke Alarm (Thermoptek) with Sealed Longlife Back-up Battery - FireAngel Pro ST-230
Discontinued Product
This product has been discontinued.
alternative product
Mains Radio-Interlink Smoke & Heat Alarms with Back-up - FireAngel Pro Connected
- Power: 230V mains powered with sealed longlife back-up battery
- Available in Optical and Heat versions (FP1640W2-R and FP1740W2-R)
- Interlinks via radio frequency with up to 50 units
- Kitemarked, CE marked and suitable for BS 5839-6: 2019 Grade D1 installations
- Compatible with the FireAngel Pro Connected Gateway
- Please note: alarms are sold individually
- Also suitable for the 2022 Scottish legislation
£80.15 inc VAT
£66.79 ex VAT
Product Overview
Interlink
Technical Data
FAQs (1)

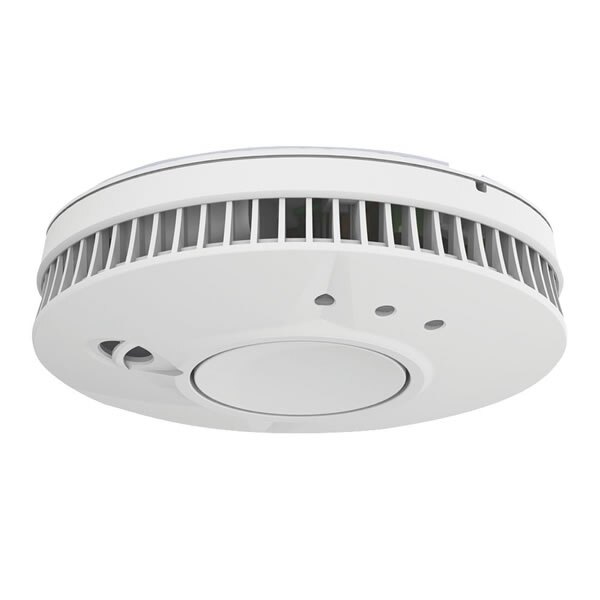

The FireAngel Pro ST-230 optical smoke alarm is mains powered that has a 10 year lifespan with a sealed lifetime lithium back-up battery. Designed to last the life of the alarm, the back-up battery continues to provide power in the event of a mains failure. The ST-230 smoke alarm can be interlinked (using cable) with up to 30 smoke and heat alarms from the FireAngel Pro series, providing wide coverage within a single smoke alarm system. Once interlinked, if the ST-230 smoke alarm is activated, it triggers all other linked alarms to also sound.
- Power: 230V mains powered with a lifetime lithium back-up battery
- Backup Battery: Built-in battery lasts the lifetime of your alarm
- Warranty: 1 year warranty
- CE marked and Kitemarked to BS EN 14604
- Up to 30 FireAngel Pro alarms can be hard-wire interlinked within a single system
- Suitable for installations complying to BS 5839-6: 2019 Grade D1
- Thermally enhanced optical smoke sensor (Thermoptek technology)
- Less prone to false alarms caused by cooking fumes
- Test, hush and Sleep Easy™ function
- Locate function: allows you to find the alarm that activated the system
- Tamper-proof mounting plate locks the alarm head in place
- Suitable for bedrooms, living rooms and downstairs hallways (not suitable for kitchens or garages)
- Supplied with fixings; 2 x screws and 2 x rawl plugs
- This alarm is also suitable for both the Welsh and Scottish updated 2022 legislation
In a wireless-only system the maximum number of compatible units that can interlink is 50, while a hard-wired-only system is limited to 30 units. In a mixed hard-wired and wireless alarm system these maximum quantities can be exceeded.
For each "group" of hard-wired alarms in a system, only one should be a wireless model. For example, in a 3 storey house you could hard-wire 2x ST-230 and 1x WST-230 alarms together on each floor with all of the WST-230 models wirelessly interlinked to each other. This can technically be done to a maximum of 50 groups of 30 alarms, though FireAngel has not designed, optimised, or tested these alarms for such a large system. Having so many alarms interlinked would create large communication delays between the alarms, potentially resulting in occupants not being given adequate warning of a fire. It is heavily recommended that customers desiring a large amount of alarms for a single property instead look into full Fire Alarm Systems which are designed for larger premises.
The table below shows all the units that can interlink with the FireAngel Pro alarms.
Alarms from the Same Series
| Model Number | Type of unit | Type of interlink |
|---|---|---|
| WST-230 | Mains Powered Optical Smoke Alarm | Hard-wire interlink |
| WHT-230 | Mains Powered Heat Alarm | Hard-wire interlink |
| ST-230 | Mains Powered Optical Smoke Alarm | Hard-wire interlink |
| HT-230 | Mains Powered Heat Alarm | Hard-wire interlink |
| Product Code | FAST230 |
|---|---|
| Alternative Product Codes | ST-230 |
| Brand | FireAngel |
| Back-Up Battery | Sealed lithium back-up battery |
| Dimensions (HxDia) | 52x141mm |
| Operating Temperature | -10 °C to +45 °C |
| Sound Output | 85dB |
| Weight | 0.26kg |
| Product Datasheets |
Q. What sort of smoke alarm system would I need to install for a HMO?
A.
BS 5839-6 recommends that one or two storey HMOs with an individual floor area of no more than 200sqm (not the total of both floors) should have a Grade D smoke alarm system installed. Grade D refers to mains powered smoke alarms with a back up battery power supply. The alarms can be interlinked either by wire or by radio signal and the system does not require a separate fire alarm panel. For HMOs of 3 storey or higher, a Grade A panel system would need to be installed. This can cover the whole of the building, or can be used just for the communal areas with a separate Grade D system installed for the individual dwellings. For both applications, the level of cover should be a minimum of LD3 (in all escape routes) but this may change according to the fire risk assessment.
Key Product Features
Easy-to-use test/hush button takes centre stage
Break-out tab for seamless trunk wiring connection
3 coloured LEDs show you its status at a glance

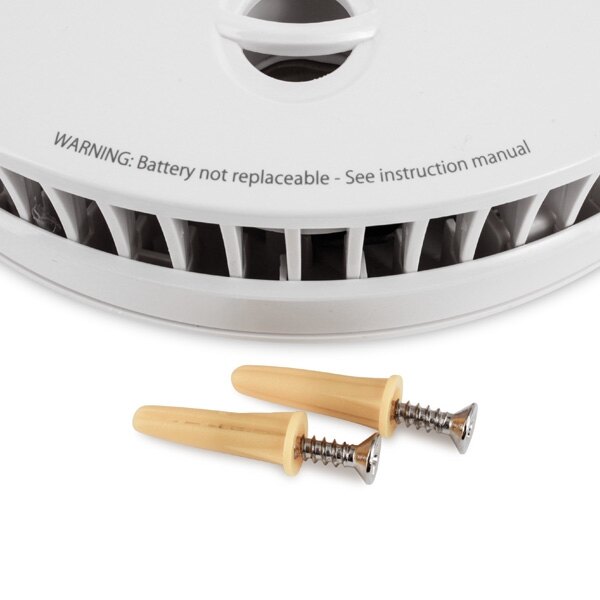

Screws and rawl plugs for installation are included
What's Included?
Every FireAngel FAST230 is supplied with the following components.
- 1 x FireAngel Pro ST-230 optical alarm
- 1 x Lifetime lithium back-up battery
- 1 x Screw fixing set (screws & rawl plugs)
- 1 x Instruction manual
